HawkEye® XL HD Alignment Machine

Big or small, align them all

Made in USA

HawkEye® XL

Fast and highly-capable heavy-duty alignment machine

Three-dimensional XL targets are durable, low maintenance, and non-electronic

High-definition cameras are accurate, precise, and offer extra-long-range sight

Capture all measurements in a single rolling compensation

See live alignment reading from three axles at once

Perform wheel alignments on any surface, in any bay

Fully Integrated Alignment rack integration streamlines processes

HunterNet® 2 connectivity to see and manage your performance





Send a message to your local Hunter business consultant to receive a free pricing quote or product demo.




Hunter's industry-standard vision technology built for commercial vehicles

XL Targets

Hunter's patented 3D targets offer extreme durability, low maintenance, and no electronics at the wheel.

High-definition cameras

Extra-long range, high-resolution cameras precisely monitor each wheel in a 3D space to provide pinpoint accurate measurements.

Multi-Axle Readings

See live alignment readings from three axles at one time with guided procedures.

Alignments in any bay

Move the aligner for use in any bay, on the floor or a lift with adjustable camera beam.

Trailer alignment

Long range cameras easily see targets on 53 foot trailers. Align using optional kingpin adaptor.

Truck Pusher

Effortlessly move vehicle for rolling comp with rechargeable battery-powered pusher.




Return on Investment

Calculate your payback and XL profits

Did you know?

Approximately 70% of trucks are out of alignment. Proper alignment can save fuel and prevent premature tire wear. Alignment can also reduce driver fatigue, which in turn improves road safety.

Information derived from



Alignment lift rack integration

Streamline the process with Fully Integrated Alignment (FIA)

1 trip

To the aligner console


0 jacking axles



81 steps

Total in the process


4 minutes

To get alignment readings


  1. WinAlign® console Communicates directly with lift to automatically operate turnplates and slip plates.
  2. Heavy-Duty Four-Post lift console Raising the vehicle triggers the sensors to look for wheel targets.
  3. PowerSlide® system Slip plates and turnplates automatically lock and unlock at the appropriate times.

Requires FIA-capable Hunter lift or turnplates





Ready for your entire fleet or whatever comes through your door

Align a wide range of commercial vehicles from semi truck tractors, trailers, big rigs, buses, box trucks, and even passenger vehicles.

    Truck and Bus alignments
    Trailer alignments
    Medium-duty truck alignment
    Light-duty vehicle alignment

    Equip your shop to be ready for any vehicle.

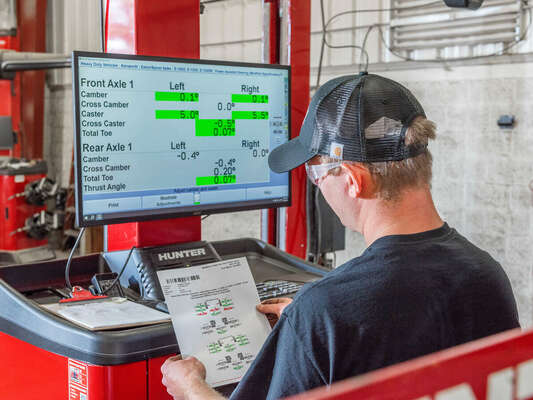

    Unmatched software

    Patented technology maximizes productivity in your alignment bay

    Guided procedures

    Vehicle specific procedures guide the operator with step-by-step instructions.


    Patented power tools

    Procedures designed so you can complete the work accurately the first time, every time.


    Light-duty vehicles

    Additional features included for servicing light-duty vehicles.


    Three Axles Live

    See three axles live with all measurements at once. Reduce setup time through minimal target movement.


    Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.

    60+ Axle Configurations Possible

    Select from over 60 procedures to perform the fastest, easiest, step-by-step alignment process on virtually any vehicle.


    Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.



    Rear Axle Adjustment

    Cut adjustment times in half for rear axle corrections. Graphics let you get it right on the first try.


    Automatic Bushing Calculator®

    Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Eases the process of servicing Ford F-150-450's.


    Adjustment Videos

    Strengthen technician competency and extend profit opportunities with helpful adjustment videos.



    Your local Hunter service representative can answer questions, help with equipment operation and provide on-site training.

    Purchase genuine Hunter replacement parts online


    This contact form is intended for legitimate Hunter equipment and service inquiries.  All other use is prohibited and will be discarded. See Full Terms of Use




    HunterNet® 2 Portal

    Take control of your equipment, numbers, and profitability


    Equipment intelligence tools help you manage your business and profits in real time

    • Maximize your shop's performance
    • Monitor your equipment ROI
    • Buy genuine Hunter consumables
    • View real-time equipment activity

    Learn more about what HunterNet® 2 does for other Hunter equipment

    Recall past results

    View previously serviced vehicles and recall printouts.

    Monitor your ROI

    See your equipment payback in real time.

    View your performance

    Set goals and see how your business performs day-to-day.

    Receive daily reports

    Setup to receive daily Push Reports to keep your goals and performance in check.



    Options and accessories

    Equip your shop for efficient alignments

    Hunter's Heavy-Duty Four-Post semi and truck lift features a 35,000-lb. lifting capacity, 300-in. alignment wheelbase capability, galvanized runways and turnplate pockets and slipplates for servicing standard vehicles. It can be equipped with optional Powerslide and FIA functions that connect it to the aligner to streamline your alignment process.

    Turnplate options for floor or other racks


    Utilize an existing pit
    • Permanent installation
    • Easily accomodates existing pits, no need for a rack
    • Adjustable track width — half-ton to Class 8
    • 22,000 lbs. (10,000 kg) per axle
    • Built-in turnplate bridges for rolling compensation


    Enhance your rack
    • Compatible with Hunter HD alignment pit rack models
    • Perform Quick Check®s and alignments more easily
    • Adjustable track width — half-ton to Class 8
    • 22,000 lbs. (10,000 kg) per axle
    • Built-in bridges for rolling compensation


    Great for new construction
    • Level profile — reduces tripping hazards
    • Provides clean installation and smooth approach
    • Adjustable track width — half-ton to Class 8
    • 22,000 lbs. (10,000 kg) per axle
    • Built-in turnplate bridges for rolling compensation


    Ultimate versatility
    • Perfect for multiple bays or multiple steer axles (additional sets required)
    • Mobile alignment service
    • 22,000 lbs. (10,000 kg) per axle

    Other accessories

    Convenient accessibility

    1. Rolling Storage Cart - Hang targets for quick access.
    2. Secondary Console Kit - Provide better visibility and control. Mounts to cart shown.

    Mini Self-Centering Clamps

    Mount to hub center of front rims. (set of 2)

    Trailer Gauge

    Mounts to the kingpin for trailer alignments.

    Remote Indicator

    Maintain control while making adjustments.

    Wide-Angle Targets

    Easily and accurately measure max steer.




    Hunter Solutions

    Get the most out of your alignment system

    Unlock profit potential with Quick Check® Commercial unmanned inspection

    • Keep your equipment producing with a steady stream of high-margin alignments
    • Scan every truck, axle and tire that comes into your shop with no technician required
    • Inspects for camber, total toe, scrub and tire wear in less than 30 seconds

    Learn more about Quick Check® Commercial

    Did you know?

    Over the course of 5 million miles, a fleet with properly aligned wheels will save approximately $60,000 in fuel and 18 million miles of tire life.

    Figures derived from research by the American Trucking Association’s Technology & Maintenance Council.

    Advance your alignment business


    Self-Centering Adaptors

    (Heavy Duty)

    Fits 15-28" rim diameter


    ADASLink® with DAS 3000

    (Light and Medium Duty)

    Steering angle resets

    Dynamic calibration

    Static calibration


    QuickGrip Adaptors

    (Light Duty)

    Two-axle vehicles

    No metal-to-metal contact

    See how other shops have supersized their alignment capabilities



    Send a message to your local Hunter heavy-duty business consultant to schedule a free on-site demo.


    This contact form is intended for legitimate Hunter equipment and service inquiries.  All other use is prohibited and will be discarded. See Full Terms of Use





    Hunter's 3-Year Warranty

    We stand beside our equipment and your purchase.


    Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.

    See full warranty details here.



    Sign up for local hands-on and classroom learning with a Hunter ASE-certified trainer to help you learn new skills or develop old ones. View course offerings near you
