Maximum Productivity, Minimum Space


Alignment Rack

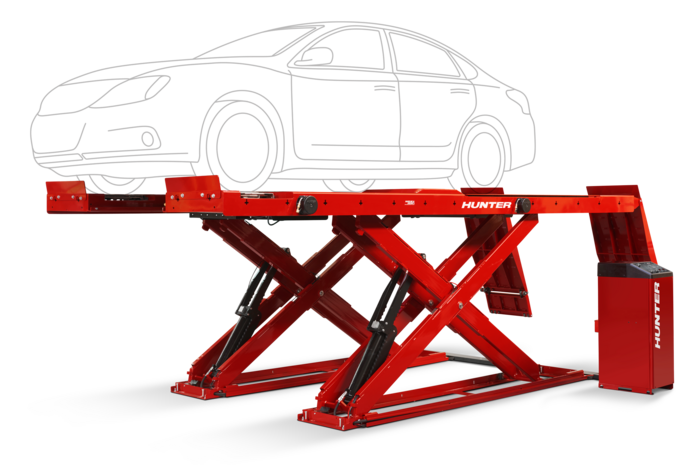

SCISSOR ALIGNMENT LIFTS

Maximum Productivity, Minimum Space

Hunter's automotive scissor lift family offers four capacities and several wheelbase lengths to meet virtually any need. Hunter vehicle scissor lift racks feature low drive on heights for all models, or even popular flush mount configurations. Add InflationStation™, PowerSlide®, and AlignLights options to really ramp up productivity.

New harsh-duty options available for high road salt/brine use applications.

FEATURES AT-A-GLANCE

  • Open-front and rear access
  • Stainless steel turnplates standard
  • Built-in slip plates standard
  • Two moveable worksteps standard

SPECIFICATIONS AT-A-GLANCE

  • 4500 - 7200 kg
    Capacity
  • SWING AIR JACKS
    Optional
  • 610 mm
    Wide runways
  • 4216 - 4953 mm
    2-Wheel Alignment Wheelbase
GET A QUOTE





Hunter Scissor Alignment Lifts

/





PRODUCT FAMILY AT-A-GLANCE

RX72

7200 kg Capacity
  • 7200 kg Capacity
  • 4953 mm Two-wheel alignment wheelbase
  • Flush-mount installation only
  • PowerSlide® and InflationStation™ capable

RX63

6300 kg Capacity
  • 6300 kg Capacity
  • 4623 mm Two-wheel alignment wheelbase
  • Surface-mount installation only
  • PowerSlide® and InflationStation™ capable

RX55

5500 kg Capacity
  • 5500 kg Capacity
  • 4547 mm Two-wheel alignment wheelbase
  • Flush- or surface-mount installation
  • PowerSlide® and InflationStation™ capable

RX45

4500 kg Capacity
  • 4500 kg Capacity
  • 4216 or 4547 mm Two-wheel alignment wheelbase
  • Flush- or surface-mount installation
  • PowerSlide® and InflationStation™ capable





Streamline the process with Fully Integrated Alignment (FIA)



Eliminate errors

Automates technician tasks, like locking and unlocking turnplates, so critical steps aren’t skipped, preventing poor alignments.

60% Faster

Complete alignments faster with Hunter's synchronized wheel alignment machine and alignment rack.

WinAlign® Console

Guides technicians step-by-step, automates turnplates and slipplates, and communicates directly with the lift to set tire pressure.

Automatic Functions

Turnplates and slip plates auto-lock, and inflation station automatically inflates tires.

Precision Cameras

Alignment
  • Four high-resolution cameras
  • Measurements are taken automatically once the fourth target is installed



Auto-locking turnplates & slipplates

Exclusive

Auto-lock saves time and trips around the vehicle



Inflation Station

Patented

  • Automatically inflates all four tires simultaneously
  • Automatically records starting and final pressures
  • Hose recoils to keep work area clear



PowerSlide® System

Patended

  • Slipplates and turnplates automatically lock and unlock at appropriate times
  • No more struggles with turnplate & slipplate pins





Placeholder for YouTube video

Hunter Scissor Alignment Lifts: Standard Operations

See a quick demonstration of the safest and most efficient methods of operating the Hunter RX Scissor Lift Rack with a vehicle loaded on the runways.

Placeholder for YouTube video

Fully Integrated Alignment Equipment from Hunter Engineering

Hunter's fully integrated alignment system reduces the technician's trips around the vehicle, and greatly reduces trips to the alignment console.

Placeholder for YouTube video

Hunter Alignment Rack: Precision at Its Best!

Hunter Alignment Rack: Precision at Its Best!





Hunter's 3-Year Warranty

Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.





Flush-Mounting

Eliminate ground clearance concerns, and give your workspace a premium appearance.

Extra-Wide Runways

Drive-on ease, up to vehicles 2337 mm wide, wheelbase choices allow for fits for every shop.

Fast Descent

Reduced lowering time by 50% with soft landing ensures safety.

Swing Air Jack Equipped

Equip with optional high-capacity swing air jacks—an industry standard with unmatched height, reach and durability.

Built-in Rear Slip Plates

2235 mm to 4013 mm long for 4-wheel alignments on any vehicle.

Stainless Steel Turnplates

Stainless Steel Turnplates Standard, for a lifetime of easy and accurate alignments.

Louvered Approach Ramps

High traction prevents wheel spin. Better than diamond plate or abrasive finish.

Sixteen Position Locks

Fine mesh locks insure levelness and safety.

Electronic Level Control

Keeps runways level at all time shuts down with obstruction.

Hydraulic Safety Fuses

Instantly shutdown in event of hose failure.

Optional Alignlights

See where you work. Lights shut off automatically when rack is lowered, light when raised.

Air Line Kit

Air supply to jacks and auxiliary ports standard.

Two Movable Worksteps

Sturdy, lightweight and lock into multiple convenient locations (not suitable for flush lifts).

Hunter Scissor Lift Features

Discover how your Hunter Scissor Lift can benefit your shop.





Send a message to your local Hunter business consultant to schedule a free on-site demo.

This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use

Not in ?





Complete Alignment Automation

Our fully inegrated alignment system (FIA) automates turnplates, slip plates, and tire inflation while WinAlign® guides every step. Upgrade your scissor rack with seamless alignment capability today.





Optional Harsh Duty

Racks with Hunter's Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage. Available only on IS and PS model lift racks.



Zinc-rich primer

Zinc-rich primer on runways, ramps and bases provide a second layer of protection

Stainless Steel Slipplate Tops

Corrosion-resistant stainless steel slipplate tops and complete turnplates

Epoxy-Sealed Joints

Epoxy-sealed joints and seams prevent salt seepage between adjoining pieces of metal

Polymer Components

Polymer slipplate balls and retainers will not corrode

Threshold Cover

Pre-galvanized and powder coated threshold cover





SET ASIDE A BIT OF SPACE IN
YOUR SHOP FOR PRODUCTIVITY

SCHEDULE A FREE ON-SITE DEMO

Receive same- or next-day service

Get a free quote or on-site demo

Register for ASE-accredited training

General information & questions





Send a message to your local Hunter business consultant to schedule a free on-site demo.

This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use

Not in ?





  SPECIFICATIONS

Specifications





GALLERY

Because of continuing technological advances, features and configurations shown in customer photos may vary.





Documents





FAQ

  • What are the advantages of a scissor alignment lift?

    Scissor alignment lifts offer a compact, space-saving design that maximizes shop efficiency. Their low-profile platforms allow easy drive-on access while providing excellent access to wheels and the vehicle underslide. Hunter's scissor lifts offer precision, space efficiency, and advanced alignment capabilities.

  • What types of vehicles can Hunter scissor lifts accommodate?

    Hunter scissor lifts are ideal for servicing a wide range of vehicles, including passenger cars, SUVs, and light trucks. They support wheelbases up to 4953 mm and lifting capacities up to 6350 kg.

  • What are the key features of Hunter scissor lift racks?

    Flush-mount or surface-mount installation.

    PowerSlide® and Inflation Station options.

    Extra-wide runways for larger vehicles.

    Integrated turnplates and slipplates for precise alignment.

    Fast rise and descent times for improved shop efficiency.

  • How does the PowerSlide® feature improve alignment service?

    PowerSlide® automatically locks and unlocks turnplates and slipplates, streamlining the alignment process and reducing technician effort.

  • Are Hunter scissor lifts compatible with Hunter alignment systems?

    Yes, Hunter scissor lifts are fully compatible with Hunter’s advanced alignment systems, including HawkEye Elite®, ensuring seamless integration and accurate results.

  • What installation options are available for Hunter scissor lifts?

    Hunter offers both flush-mount and surface-mount configurations to suit different shop layouts and service bay requirements.

  • What is the lifting capacity of Hunter scissor lift racks?

    Hunter scissor lifts support up to 6350 kg, making them suitable for most passenger and light-duty commercial vehicles.

  • How do Hunter scissor lifts improve shop productivity?

    With fast rise times, integrated alignment features, and space-saving designs, Hunter scissor lifts help technicians complete services more efficiently and safely.

  • Where are Hunter scissor lift racks manufactured?

    Hunter scissor lifts are engineered in the United States and manufactured in Durant, Missouri, delivering reliable performance backed by American design and local support.

  • How can I request a demo or quote for a Hunter scissor lift?

    You can schedule a free on-site demo or request a personalized quote directly through Hunter’s website.
